A new week has begun, I would like to share with you the updates of CAXCAD software in the past week:

Automatic Design module Auto Design integration, users do not need to manually in-depth, can complete the evaluation function construction

Added MTF optimization operand MSGT MTGT MAGT, no need to set boundaries to complete MTF target optimization

Update the thermal analysis algorithm

Updated the speed of glass library reading

The new CAXCAD optimization module is presented below

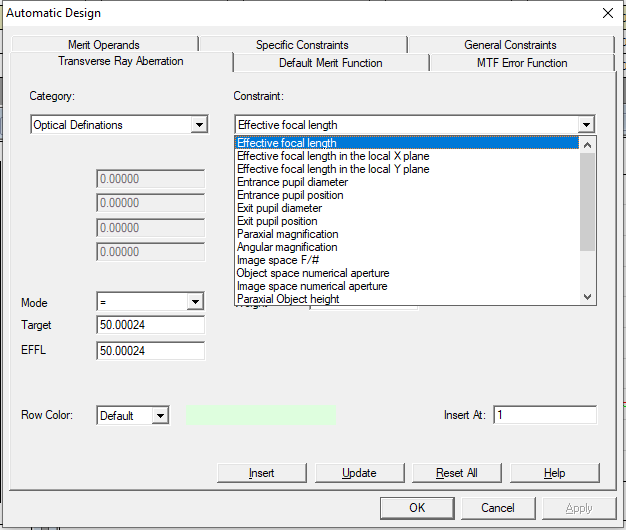

Optically define MF targets

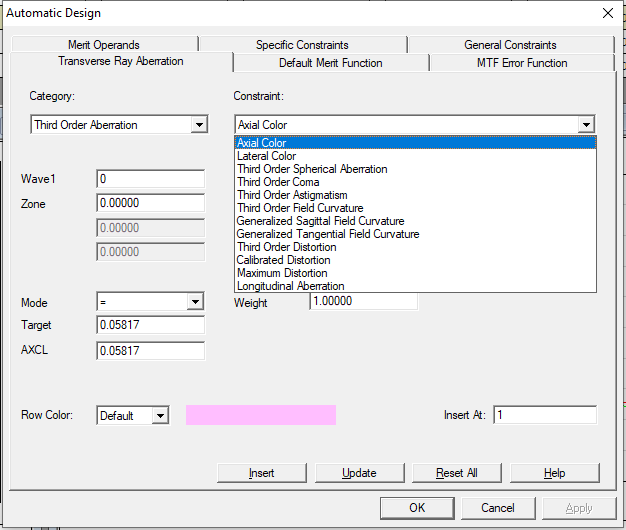

Aberration control MF target

Paue MF targets

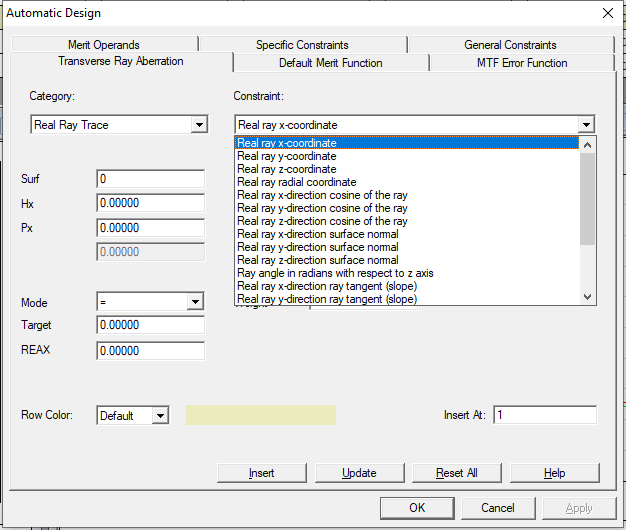

Real light pursuing MF target

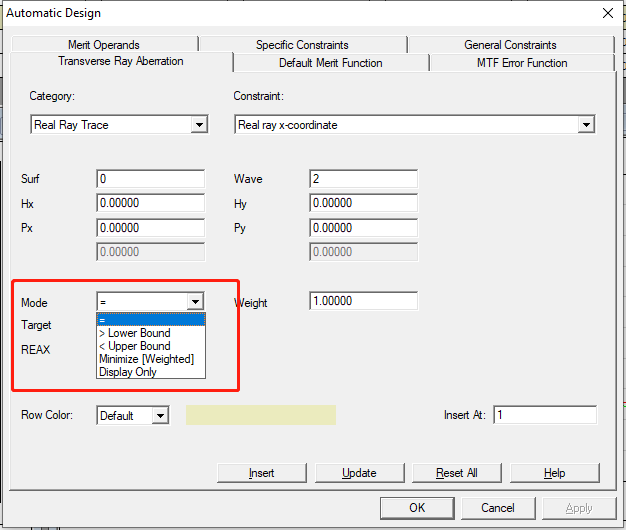

All targets support boundary range control

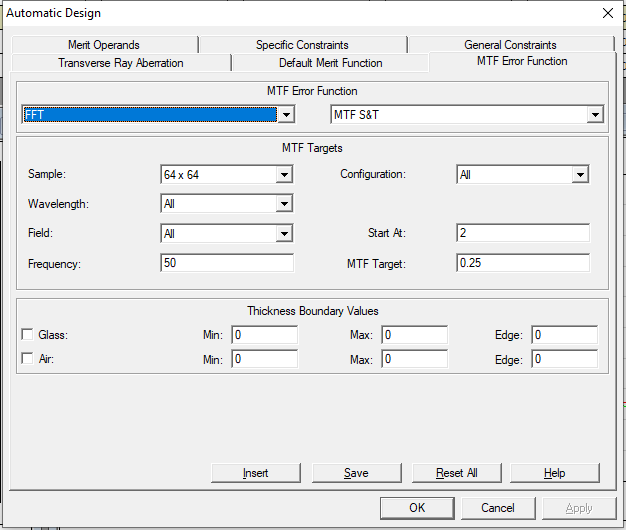

MTF automatic target setting

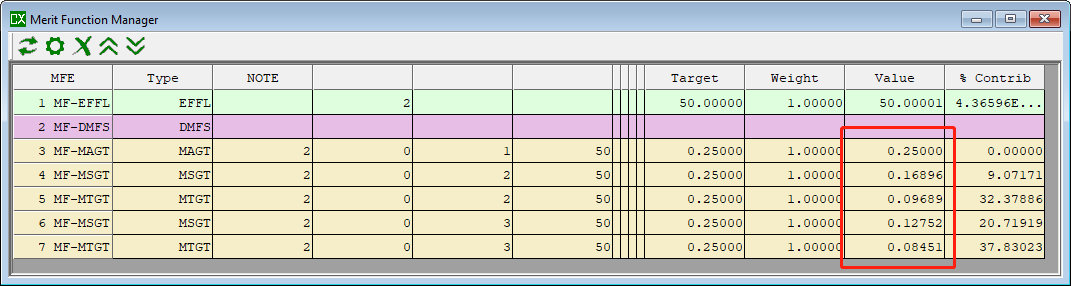

Automatically set MAGT MSGT MTGT, all operations without manual input

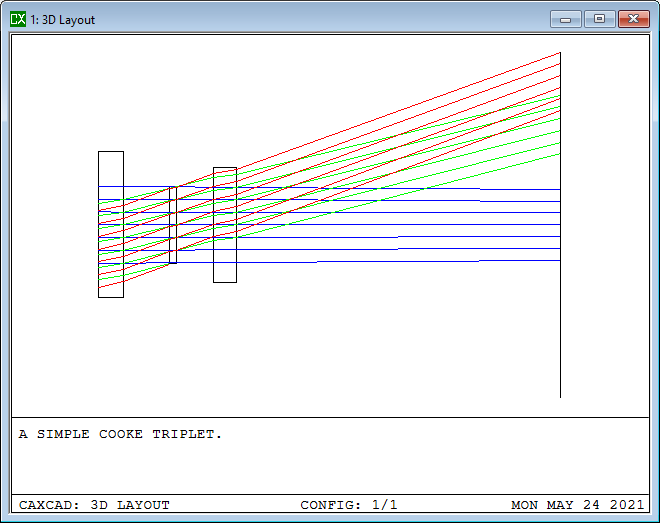

Here is a Cooke lens for demonstration

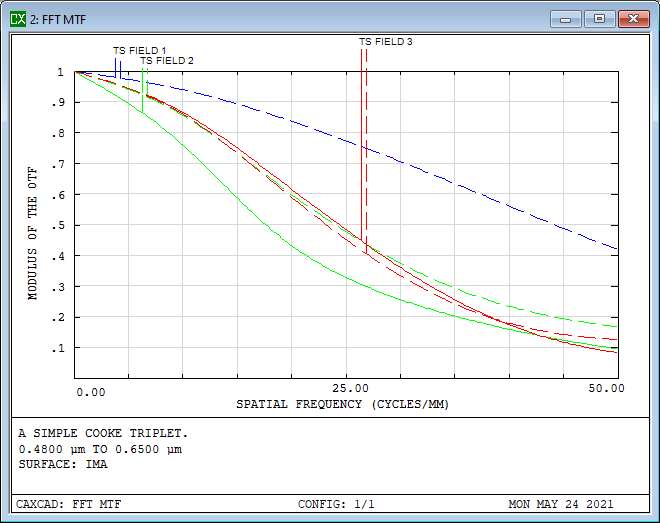

SPOT SIZE MTF after optimization

The optimization time is 1 minute, and MF is reduced from 0.1 to one-tenth of the original

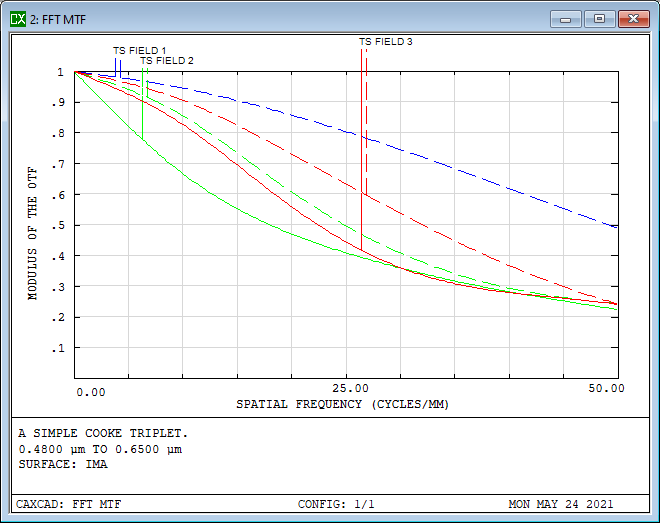

Optimized MTF

The optimization results are well verified

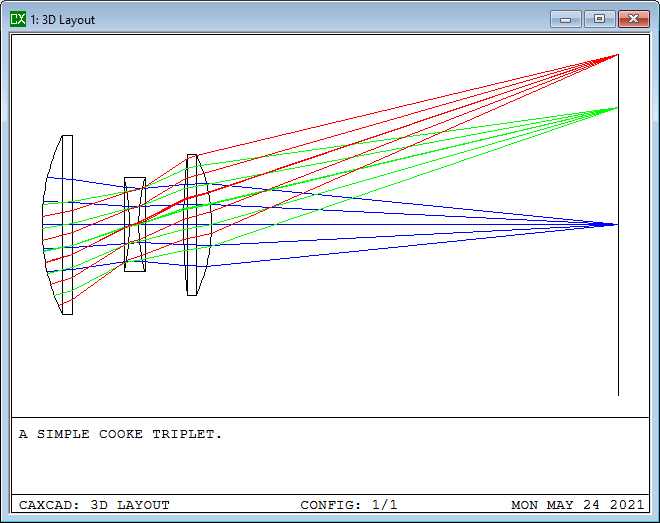

Optimize L3D after completion
